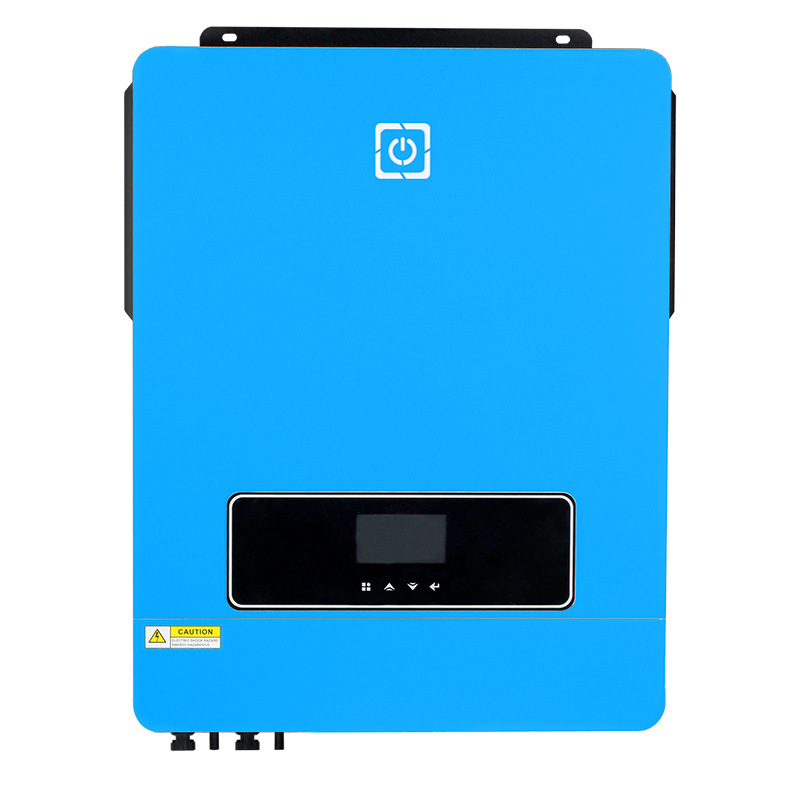

10.2Kw Energy Storage System Hybrid Solar Inverter Mppt Solar Grid Tie Solar Inverter Micro Inverter

Ask Lasest Price
Brand Name :	Suoneite
Model Number :	10200W
Price :	$431.20/boxes 1-299 boxes

Add to Cart

Product Details
Company Profile

10.2Kw Energy Storage System Hybrid Solar Inverter Mppt Solar Grid Tie Solar Inverter Micro Inverter

Products Description

MODEL	SY8.2K	SY10.2K
Maximum PV Input Power	8200W	10200W
Rated Output Power	8200W/8200VA	10200W/10200VA
Maximum Solar Charging Current	160A	180A
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage	360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage	90VDC/120VDC
MPPT Voltage Range	90VDC~450VDC
Number of MPPT Trackers/Maximum Input Current	1/27A
GRID OUTPUT(AC)
Nominal Output Voltage	220/230/240VAC
Output Voltage Range	195~253VAC
Nominal Output Current	35.6A	44.3A
Power Factor	>0.99
Feed-in Grid Frequency Range	49~51±1Hz
EFFICIENCY
Maximum Conversion Efficiency (DC/AC)	98%
TWO LOAD OUTPUT POWER
Full Load	8200W	10200W
Maximum Main Load	8200W	10200W
Maximum Second Load ( battery mode )	2733W	3400W
Main Load Cut Off Voltage	44VDC	44VDC
Main Load Return Voltage	48VDC	48VDC
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Auto Restart Voltage	120-140VAC/180VAC
Acceptable Input Voltage Range	280VAC or 170-280VAC
Maximum AC Input Current	40A	50A
Nominal operating frequency	50/60Hz
Surge power	16400W	20400W
PV Input(DC)
Maximum DC Voltage	500VDC
MPPT Voltage Range	90VDC~450VDC
Number of MPPT Trackers/Maximum Input Current	1/27A
BATTERY MODE OUTPUT ( AC )
Nominal Output Voltage	48VDC	48VDC
Output Waveform	Pure sine wave
Efficiency ( DC to AC )	94%
BATTERY & CHARGER
Nominal DC Voltage	48VDC	48VDC
Maximum Solar Charging Current	160A	180A
Maximum AC Charging Current	140A	160A
GENERAL
PHYSICAL
Dimension, D X W X H (mm)	555405135
Carton Dimension, D X W X H (mm)	590475215
Net Weight ( kgs )	14.2	14.5
Gross Weight ( kgs )	15.7	16.0
INTERFACE
Communication Port	RS232/WIFI/Remove LCD/GPRS
ENVIRONMENT
Operating Temperature	-10~50℃

Working Modes Applications

10.2Kw Energy Storage System Hybrid Solar Inverter Mppt Solar Grid Tie Solar Inverter Micro Inverter

Product Details

Company Profile

1,Q:Why your quotation is higher than other suppliers? A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter! .............................................................................................................................................................. 2,Q:How many categories does it have according to the output waveform ? A:Type one: Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated equipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market. Type two: Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz andTV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it does not exist grid tie electromagnetic pollution. .............................................................................................................................................................. 3,Q:Is the output voltage of our inverter stable ? A:Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need make a especial explanation : many customers found it is unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate datas. .............................................................................................................................................................. 4,Q:What is a resistive load appliances? A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully. .............................................................................................................................................................. 5,Q:What is the inductive load appliances? A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them. .............................................................................................................................................................. 6,Q:What should be noticed when installing inverter? A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.
